上海閥(fa)(fa)盛閥(fa)(fa)門制造有限公司主要生產GIQ-A型(xing)(xing)氣(qi)動(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)蝶(die)閥(fa)(fa)，可提供GIQ-A型(xing)(xing)氣(qi)動(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)蝶(die)閥(fa)(fa)價格，GIQ-A型(xing)(xing)氣(qi)動(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)蝶(die)閥(fa)(fa)說明書，GIQ-A型(xing)(xing)氣(qi)動(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)蝶(die)閥(fa)(fa)實物圖，GIQ-A型(xing)(xing)氣(qi)動(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)蝶(die)閥(fa)(fa)結構圖，GIQ-A型(xing)(xing)氣(qi)動(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)蝶(die)閥(fa)(fa)外形(xing)尺寸，GIQ-A型(xing)(xing)氣(qi)動(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)蝶(die)閥(fa)(fa)執行標(biao)準，GIQ-A型(xing)(xing)氣(qi)動(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)蝶(die)閥(fa)(fa)工作(zuo)原(yuan)理(li)，GIQ-A型(xing)(xing)氣(qi)動(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)蝶(die)閥(fa)(fa)作(zuo)用特點。

GIQ-A型氣動高真空蝶閥主要技術性能 適用范圍(Pa) 2x105～1.3x10-5 閥門漏率(Pa.L/S) ≤1.3x10-6 介質溫度（℃） -25～+80(密封材料為丁腈橡膠) -30～+150(密封材料為氟橡膠) 氣源壓力(MPa) 0.4～0.6 法蘭標準 GB/T6070 安裝位置 任意 電源電壓 標準出廠：AC220V/50Hz 特殊指定：AC110V；DC24V；DC12V等 信號反饋 標準出廠：不帶反饋信號 特殊指定：磁性開關DV/AC5～240V

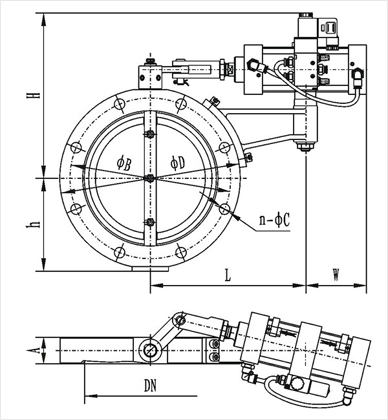

GIQ-A型氣動高真空蝶閥連接及外形尺寸 型號 通徑(DN) ΦD ΦB H h A L W n-ΦC GIQ-50A 50 110 90 162 55 26 160 62 4-Φ9  GIQ-63A 63 130 110 172 66 32  180  81 GIQ-80A 80 145 125 178 74 8-Φ9 GIQ-100A 100 165 145 187 84 8-Φ12  GIQ-125A 125 200 175 208 102 35 207  86 GIQ-150A 150 225 200 220 114 GIQ-200A 200 285 260 256 146 45 236 100 12-Φ11  GIQ-250A 250 335 310 282 173 50 GIQ-300A 300 425 395 350 216 55 280 118 12-Φ14 GIQ-400A 400 510 480 392 259 60 304 130 16-Φ14 GIQ-500A 500 600 565 440 312 80 350 175 12-Φ18 GIQ-600A 600 710 670 525 366 100 360 212 12-Φ21 GIQ-800A 800 920 880 690 473 130 520 268 20-Φ21

注：通徑DN≥500法蘭連接為JB919標準
